CS Carbon

Style you See. Comfort you Feel.

CS Carbon

CS Carbon

Modern, sleek, and signal-friendly, CS Carbon uses true carbon nano particle pigment—not simply carbon colored dye. Designed for everyday installations where great looks and lasting durability matter, CS Carbon delivers strong heat rejection, optical clarity, and excellent color stability—without traditional dyes. Built with two layers of high-heat-shrinkable, optically clear, weatherable polyester, CS Carbon provides long-term performance—an ideal balance of value, performance, and style for today’s professionals and their customers.

Highlights

Carbon Series Carbon Nano Particle Technology Color-Stable Pigments Up to 77% IR Rejection Up to 61% TSER Two Weatherable Polyester Layers

Advantages

Popular Shades Glare Reduction Charcoal Appearance Excellent Optical Clarity 99% Ultraviolet Rejection Lifetime Warranty Coverage
Series: Carbon Ply Layers: 2
Product: CS Carbon Mil Thickness: 1.5
Warranty: Warranty Lifetime Adhesive: Pressure Sensitive
VLT Options: 50, 35, 20, 15, 05 Scratch Resistant: Yes
Performance
Specifications		 PLY MIL VLT TSER IR
900-1000		 IR
780-2500		 SC UVR GR VLR-E SE-T SE-R SE-A
CS Carbon 50 2 1.5 51 31 37 34 0.78 99 42 7 58 7 35
CS Carbon 35 2 1.5 36 40 47 43 0.68 99 59 6 46 6 47
CS Carbon 20 2 1.5 20 50 60 56 0.56 99 78 5 32 5 63
CS Carbon 15 2 1.5 14 53 66 60 0.52 99 84 5 27 5 68
CS Carbon 05 2 1.5 5 61 77 71 0.40 99 94 5 17 5 78

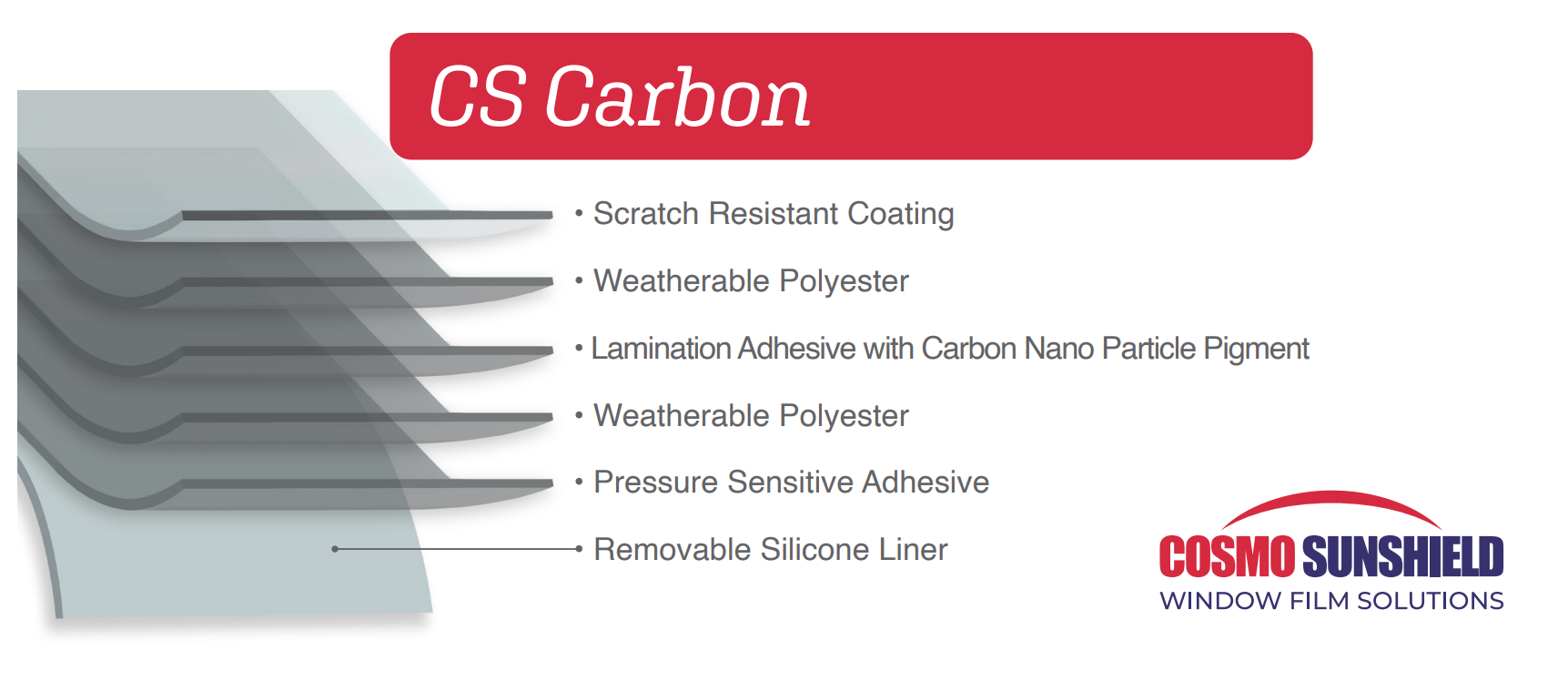

CS Carbon construction illustration CS Carbon construction illustration
  • PLY:Layers
  • MIL:Thickness
  • VLT:Visible Light Transmittance
  • TSER:Total Solar Energy Rejection
  • IR:Infrared Rejection
  • SC:Shading Coefficient
  • UVR:Ultraviolet Rejection
  • GR:Glare Reduction
  • VLR-E:Visible Light Reflectance - Exterior
  • SE-T:Solar Energy Transmittance
  • SE-R:Solar Energy Reflectance
  • SE-A:Solar Energy Absorptance

*Performance specifications are subject to normal manufacturing tolerances within industry standards.
