CS Umbra HP
Style you See. Comfort you Feel.
CS Umbra HP
A proven performer with classic style and dependable value, CS Umbra HP combines metallized technology with true carbon nano particle pigment to enhance heat rejection and color stability—without traditional dyes. Constructed with two layers of high-heat-shrinkable, optically clear, weatherable polyester, this hybrid film is designed for professionals seeking great looks and reliable performance—without the added cost of nano IR particle technology. Rich charcoal tones, strong heat rejection, and installer-friendly handling make every job smooth and professional.
Highlights
High Performance Series
Carbon Nano Particle Technology
Color-Stable Pigments
Up to 85% IR Rejection
Up to 68% TSER

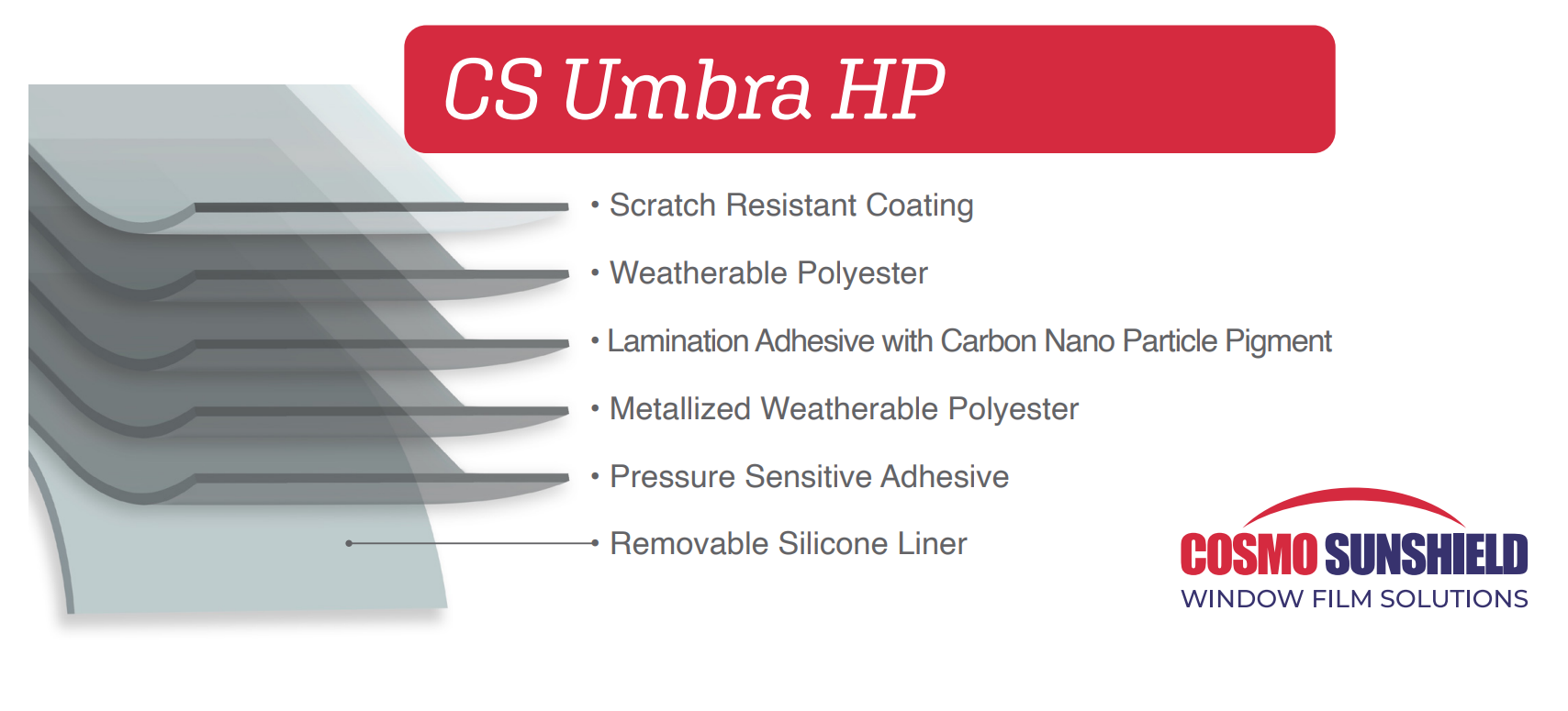

2 Weatherable Polyester Layers – 1 Metallized
Advantages
Popular Shades
Glare Reduction
Charcoal Appearance
Excellent Optical Clarity
99% Ultraviolet Rejection
Lifetime Warranty Coverage
| Series: | High Performance | Ply Layers: | 2 |
|---|---|---|---|
| Product: | CS Umbra HP | Mil Thickness: | 2 |
| Warranty: | Lifetime | Adhesive: | Pressure Sensitive |
| Scratch Resistant: | Yes |
| Performance Specifications |
PLY | MIL | VLT | TSER | IR 900-1000 |
IR 780-2500 |
SC | UVR | GR | VLR-E | SE-T | SE-R | SE-A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CS Umbra HP 50 | 2 | 2 | 53 | 39 | 51 | 53 | 0.68 | 99 | 41 | 12 | 49 | 12 | 40 |
| CS Umbra HP 35 | 2 | 2 | 38 | 46 | 55 | 56 | 0.61 | 99 | 57 | 13 | 41 | 12 | 47 |
| CS Umbra HP 20 | 2 | 2 | 21 | 53 | 65 | 62 | 0.53 | 99 | 77 | 77 | 29 | 7 | 64 |
| CS Umbra HP 15 | 2 | 2 | 13 | 63 | 79 | 78 | 0.41 | 99 | 85 | 15 | 18 | 16 | 67 |
| CS Umbra HP 05 | 2 | 2 | 7 | 68 | 85 | 83 | 0.36 | 99 | 92 | 15 | 12 | 15 | 73 |
- PLY:Layers
- MIL:Thickness
- VLT:Visible Light Transmittance
- TSER:Total Solar Energy Rejection
- IR:Infrared Rejection
- SC:Shading Coefficient
- UVR:Ultraviolet Rejection
- GR:Glare Reduction
- VLR-E:Visible Light Reflectance - Exterior
- SE-T:Solar Energy Transmittance
- SE-R:Solar Energy Reflectance
- SE-A:Solar Energy Absorptance
*Performance specifications are subject to normal manufacturing tolerances within industry standards.
